A62030: Portainserto per tornitura esterna 93°; TKN

venerdì 1 dicembre 2023

Ricambi: vedi pag. 529/530/531/532.

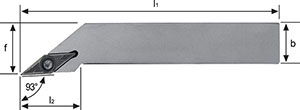

Codice	€	ISO	h1 mm	h2 mm	b mm	l1 mm	l2 mm	f mm	Inserto	Ricambio sottoplacchetta	Ricambio vite sottoplacchetta	Ricambio vite inserto	Ricambio giravite
A62030 0112	-,--	SVJCR 1212 F11	12	12	12	80	21,5	16	VCGT 1103	-	-	A910250015	A559250070
A62030 0116	-,--	SVJCR 1616 H11	16	16	16	100	21,5	20	VCGT 1103	-	-	A910250015	A559250070
A62030 0120	-,--	SVJCR 2020 K11	20	20	20	125	23	25	VCGT 1103	-	-	A910250015	A559250070
A62030 0125	-,--	SVJCR 2525 M11	25	25	25	150	25,5	32	VCGT 1103	-	-	A910250015	A559250070
A62030 0220	-,--	SVJCR 2020 K16	20	20	20	125	29,5	25	VCMT-VCGT 1604	A910500010	A910100005	A910250005	A559250090
A62030 0225	-,--	SVJCR 2525 M16	25	25	25	150	32,5	32	VCMT-VCGT 1604	A910500010	A910100005	A910250005	A559250090
A62030 0312	-,--	SVJCL 1212 F11	12	12	12	80	21,5	16	VCGT 1103	-	-	A910250015	A559250070
A62030 0316	-,--	SVJCL 1616 H11	16	16	16	100	21,5	20	VCGT 1103	-	-	A910250015	A559250070
A62030 0320	-,--	SVJCL 2020 K11	20	20	20	125	23	25	VCGT 1103	-	-	A910250015	A559250070
A62030 0325	-,--	SVJCL 2525 M11	25	25	25	150	25,5	32	VCGT 1103	-	-	A910250015	A559250070
A62030 0420	-,--	SVJCL 2020 K16	20	20	20	125	29,5	25	VCMT-VCGT 1604	A910500010	A910100005	A910250005	A559250090
A62030 0425	-,--	SVJCL 2525 M16	25	25	25	150	32,5	32	VCMT-VCGT 1604	A910500010	A910100005	A910250005	A559250090
